Apple Macintosh Portable
Model:M5120
Announced:September 1989
Price:US$7300 w/ hard drive
Weight:16 lbs
CPU:Motorola 68HC000, 16Mhz
RAM:1 Meg, 9 Meg maximum
Battery:6.5-Volt, 5 amp lead acid (gel type)
Display:10-inch b&w active matrix LCD
640 X 400 pixels
I/O:Built-in trackball.
Ports:Apple Desktop Bus (ADB)
Two serial ports
External SCSI port
External floppy port
Video port
Storage:Internal 1.4Meg 3.5-inch floppy drive
Internal 40 MB SCSI hard drive
OS:Mac OS 6.04

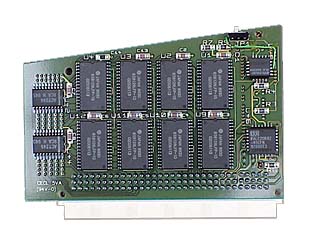

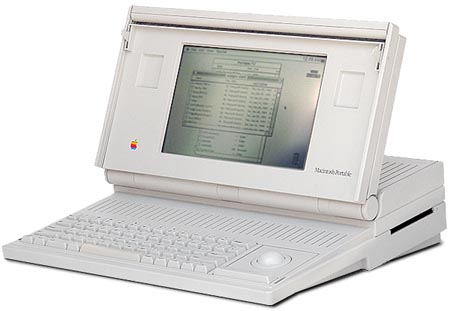

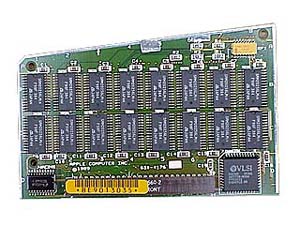

The Mac Portable is Apple's first portable Macintosh computer. Although there were already PC laptops on the market, few were as fast or powerful. The Portable has a 68000 processor running at 16 MHz, comes with 1 MB RAM which can be expanded to 9 MB RAM, has an optional internal 9600 baud modem, and includes a PDS slot (Processor Direct Slot) for direct access to the system processor. This allows for faster and more powerful expansion cards.

The Portable has an active matrix screen, which updates faster, and doesn't have the blurry effect of other early displays. This new and high-tech screen greatly added to the system price.

To the right, you can see the back-lit Macintosh Portable (model M5126), released in 1991. The original Portable screen was not back-lit, and this new version improves readability in both dark and well-lit environments. Unfortunately, it also cuts the battery life in half, to 6 hours maximum on a single charge.

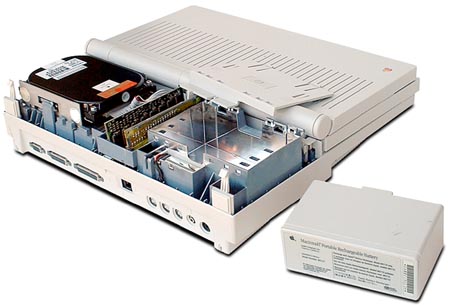

The Portable is powered by an internal lead-acid gel/cell battery, similar to those found in car batteries, which can run from 6 to 12 hours. The trade-off is that the battery adds an entire 2 pounds to the weight of the Portable.

Data storage is on a Conner 40 MB SCSI hard drive. To conserve power, the hard drive can spin down and sleep, but being a SCSI drive, it cost twice as much as other non-SCSI hard drives from the same era.

There was only one problem with the Portable which unfortunately led to its demise, it just wasn't very portable. Being rather large and weighing 16 lbs, few people had the patience to lug it around anywhere, despite all of its great features.

Two years later, in 1991, Apple released the successor to the Macintosh Portable - the Powerbook 100. Designed by Sony from the original Macintosh Portable schematics and blueprints, the new Powerbook 100 is smaller, lighter, and cheaper than the Portable.


One of my Macintosh Portables is an old one, a demonstration unit, for testing prior to production release!
