Apple Macintosh
Model:M0001
Introduced:January 1984
Price:US$2495
CPU:Motorola 68000, 7.83 Mhz
RAM:128K, later 512K
Display:9-inch monochrome screen
512x342 pixels
Ports:Two DB9 serial ports
Printer port
External floppy port
Storage:Internal 400K SSDD floppy
optional external floppy ($495)
OS:Macintosh GUI
(graphical user interface)
Macintosh - 1984
By Apple Computer






The Macintosh computer was released in January of 1984, with 128K RAM of memory. It quickly became obvious that this was insufficient, so eight months later Apple released an updated version, un-officially referred to as the 'Fat Mac'. It has 512K RAM, four times as much.

Before the Macintosh, all computers were 'text-based' - you operated them by typing words onto the keyboard. The Macintosh is run by activating pictures (icons) on the screen with a small hand-operated device called a "mouse". Most modern-day computers now operate on this principle, including modern Apple computers and most others which run the Microsoft Windows operating system.

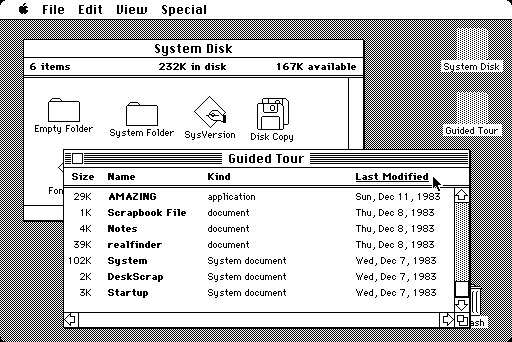

Except for the very expensive and unpopular Apple Lisa which came out in 1983, the Macintosh is considered to be the first commercially successful computer to use a GUI (Graphical User Interface), as seen below.




The Macintosh has no room for internal expansion options - no other cards or devices can be installed, nor can the graphics capabilities be upgraded. Actually, it takes special tools just to get the case open.

Although adequate for desktop publishing, many found the 9" (diagonal) black & white screen rather small and limiting. The uniqueness of its GUI operating system probably saved the Macintosh from obscurity like so many others.

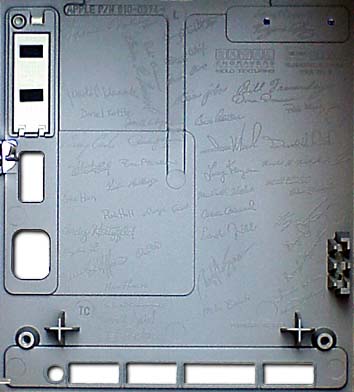

Like the Commodore Amiga 1000 and the Macintosh Portable, the Macintosh has the signatures of the designer's cast into the inside of the case.

Don't forget to use your official Macintosh carrying bag when transporting your favorite computer to remote locations!



Related Links

  • Mac Folklore - Anecdotes about the development of Mac and the people who created it.
  • Behind the scenes of the famous "1984" Macintosh commercial
  • Stanford University: Making the Macintosh: Technology and Culture in Silicon Valley
  • Macintosh from the Low End Mac web site
  • Apple-history.com
  • WOZ Homepage
  • myoldmac.net
  • Vectronics Apple World
  • Apple Macintosh before System 7
  • System software from Apple
  • Mac Easter Eggs





  • Partial History of the Apple Computer Corporation

    • 1973: Stephen Wozniak joins HP.
    • 1976: Wozniak proposes that HP create a personal computer. He is rejected.
    • 1976: March - Steve Wozniak and Steve Jobs finish work on a computer circuit board, that they call the Apple I computer.
    • 1976: April - Steve Jobs and Steve Wozniak form the Apple Computer Company, on April Fool's Day.
    • 1976: July - The Apple I computer board is sold in kit form, and delivered to stores by Steve Jobs and Steve Wozniak. Price: US$666.66.
    • 1976: August - Steve Wozniak begins work on the Apple II.
    • 1976: October - Wozniak remains at HP, but is soon convinced that he should leave and join Apple Computer.
    • 1976: December - Steve Wozniak and Randy Wigginton demonstrate the first prototype Apple II at a Homebrew Computer Club meeting.
    • 1977: March - Apple Computer moves from Jobs' garage to an office in Cupertino.
    • 1977: April - Apple Computer delivers its first Apple II system, for $1295.
    • 1977: May - 10 months after its introduction, 175 Apple I kits have sold.
    • 1978: Apple Computer begins work on an enhanced Apple II with custom chips, code-named Annie.
    • 1978: Apple Computer begins work on a supercomputer with a bit-sliced architecture, code-named Lisa.
    • 1979: June - Apple Computer introduces the Apple II Plus, with 48KB memory, for US$1195.
    • 1979: September - Apple Computer sells 35,000 Apple II computers for the fiscal year.
    • 1979: October - 2.5 years after the introduction of the Apple II, 50,000 units have been sold.
    • 1979: Apple Computer begins work on "Sara", the code name for what will be the Apple III.
    • 1980: May - Apple Computer introduces the Apple III. Price ranges from US$4500 to US$8000.
    • 1980: September - Apple Computer sells over 78,000 Apple II computers during the fiscal year.
    • 1980: Apple Computer ships the first Apple III units in limited quantity.
    • 1980: Apple Computer begins project "Diana", which would become the Apple IIe.
    • 1981: September - Apple Computer introduces its first hard drive, the 5MB ProFile, for US$3499.
    • 1981: Apple Computer officially reintroduces the Apple III, with improved software and a hard disk.
    • 1982: Sales of Apple II Plus to date: 45,000.
    • 1982: Sales of all Apple II systems to date: 750,000.
    • 1982: Apple Computer becomes the first personal computer company to reach US$1 billion in annual sales.
    • 1982: Franklin Computer Corp. unveils the Franklin Ace 1000, the first legal (at the time) Apple II clone.
    • 1983: January - Apple Computer officially unveils the Lisa computer. Its initial price is US$10,000. During its lifetime, 100,000 units are produced.
    • 1983: January - Apple Computer introduces the Apple IIe for US$1400.
    • 1983: June - The one millionth Apple II is made.
    • 1983: June - Apple Computer begins shipping the Lisa.
    • 1983: June - Video Technology introduces the Laser 3000, an Apple II workalike microcomputer.
    • 1983: June - Unitronics shows the Sonic, an Apple II workalike microcomputer.
    • 1983: July - Apple Computer officially begins marketing the Lisa computer.
    • 1983: December - Apple Computer introduces the redesigned Apple III as the Apple III+, for US$3000.
    • 1983: December - Apple unveils the new Macintosh to the press.
    • 1983: Franklin shows an operating Franklin Ace 1200 Apple II compatible for US$2200.
    • 1984: January - Apple releases a new version of the Lisa computer, the Lisa 2. It uses all new software, as well as the Macintosh operating system.
    • 1984: January - Apple Computer's Steve Jobs introduces the Apple Macintosh.
    • 1984: April - Apple Computer unveils the Apple IIc, priced at US$1300.
    • 1984: April - Apple Computer retires the Apple III and Apple III+, with only 65,000 units sold in total (90,000 made).
    • 1984: May - Apple Computer announces that 70,000 Macintosh computers have been shipped in the first 100 days since its announcement.
    • 1984: September - Apple Computer introduces the Macintosh 512K for US$3200.
    • 1984: November - The 2 millionth Apple II computer is sold.
    • 1984: Apple sells the 250,000th Macintosh system.
    • 1985: January - Apple Computer officially renames the Lisa the Macintosh XL.
    • 1985: March - Apple Computer introduces the Apple Enhanced IIe.
    • 1985: April - The Macintosh XL (formerly called Lisa) is dropped from Apple Computer's product line.
    • 1986: January - Apple Computer introduces the Macintosh Plus. Price is US$2600.
    • 1986: April - Apple Computer discontinues the original Macintosh and the Macintosh 512K.
    • 1986: April - Apple Computer introduces the Macintosh 512K Enhanced, for US$2000.
    • 1986: July - Apple Computer discontinues the Macintosh XL.
    • 1986: September - Apple Computer introduces the Apple IIGS, with the Apple 3.5 drive, for US$1000.
    • 1987: January - Apple Computer introduces the Apple Platinum IIe.
    • 1987: March - Apple Computer introduces the open architecture Macintosh II, US$3900.
    • 1987: March - Apple Computer makes its 1 millionth Macintosh personal computer.
    • 1987: March - Apple Computer introduces the expandable Macintosh SE for US$2900.
    • 1987: March - Apple Computer discontinues the Macintosh 512K Enhanced.
    • 1987: Apple Computer begins shipping the Macintosh II.
    • 1988: September - Apple Computer introduces the Apple IIc Plus for US$1100.
    • 1988: September - Apple Computer introduces the Macintosh IIx computer, base price is US$7770.
    • 1989: January - Apple Computer introduces the Macintosh SE/30, US$6500.
    • 1989: September - Apple Computer announces the Macintosh Portable, for US$6500.
    • 1989: September - Apple Computer announces the Macintosh IIci, for about US$8700.
    • 1991: February - Apple Computer discontinues the Macintosh Portable.
      Source: Chronology of Events in the History of Microcomputers
