Apple Lisa
Introduced:January 1983
Released:June 1983
Price:US $9,995
How many?100,000 in two years
CPU:Motorola 68000, 5 MHz
RAM:1 Meg
Display:12" monochrome monitor
720 X 364 graphics
Ports:1 parallel, 2 serial ports
mouse port
Expansion:three internal slots
Storage:Two 5-1/4 inch floppy drives
external 5 Meg hard drive
OS:Apple Lisa GUI



Officially, "Lisa" stood for "Local Integrated Software Architecture", but it was also the name of Apple co-founder Steve Jobs' daughter.

The Lisa is the first commercial computer with a GUI, or Graphical User Interface. Prior to the Lisa, all computers were text based - you typed commands on the keyboard to make the system respond. Now, with the Lisa, you just point-and-click at tiny pictures on the screen with a small rolling device called a 'mouse'.

The Apple Lisa was an amazing advancement in a user-friendly computer system, but Apple didn't invent the idea of the GUI, it's difficult to say who did. But Xerox's Palo Alto Research Center (PARC) created the first computer with a Graphical User Interface and a mouse, in 1973! This 'Alto' computer was never sold to the public, and in 1981 the 'Star', which cost $17,000, was far too expensive and sold poorly.

Although Apple spent an incredible amount of time and money developing the Lisa, four years and $50 million, it turned out to be an unpopular system, due to its high price and few available software applications. Additionally, it was rather slow, as the large and complex operating system was a huge burden on the 5MHz CPU.

In addition to the external 5 Megabyte "Profile" hard drive, the Lisa has two internal non-standard 871K 5-1/4 inch "Twiggy" floppy drives.

Unfortunately, the floppy drives were slow and unreliable. Because of this, after selling about 6,500 Lisa computers, Apple offered an upgrade path for Lisa owners, replacing the two "Twiggy" drives with a single 400K 3-1/2 inch Sony floppy drive. The new drive holds half as much data as the old one, but is much more reliable.

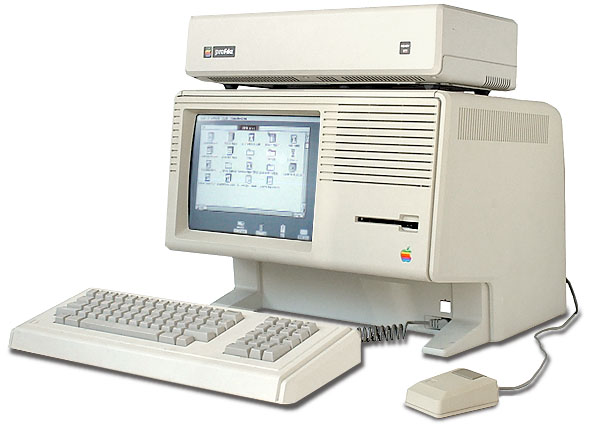

This new Lisa is refered to as the Lisa 2/5, with the "5" representing the external 5 Meg Profile drive. The Lisa can be run without any hard drive, using floppy disks only, but this is a slow and tedious method, and many applications won't even fit on a single floppy disk. The Profile hard drive has originally designed for the Apple III in 1981.

Apple also released the Lisa 2/10, with an internal 10 Meg "Widget" hard drive. The System I/O board was redesigned to support the new hard drive, and the parallel port was lost in the process. The external Profile HD can not be used with this system unless a parallel port expansion card is installed.

The upgrade from the original Lisa 1 to the Lisa 2/5 was free to Lisa owners until June 1984, after which it cost $595.
To upgrade from the Lisa 1 to the Lisa 2/10 cost $2495.
An additional 512K of RAM could be purchased for $1495.


About a year later, Apple again changed the Lisa. It would now be known as the Macintosh XL, and would run the Macintosh operating system instead of the original Lisa OS.

Sales did pick-up, but Apple discontinued the Lisa line with 100,000 units sold after 2 years. By this time, the popular (and cheaper) Macintosh line of computers was available, of which Apple sold 70,000 in the first 3 months.

The Lisa was a victim of politics as well as economics. With the advent of the portable, robot-manufactured Macintosh, the handmade desktop-sized Lisa became too costly to produce and was dropped from the Apple line.

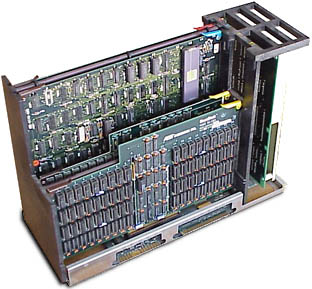

The Lisa is very technician-friendly - once the back panel is removed, the entire electronics assembly slides out in one piece, and the circuit boards are easily removed from their sockets.

The power supply is just as easy to remove and replace, it is held in place by a single thumb-screw, and slides out with just a tug.
