IBM Convertible PC
Model:5140 "Convertible"
Released:April 1986
Price: US $1,995
Weight:12 pounds / 5.5 kg
CPU:Intel 80C88 @ 4.77 MHz
RAM:256K, 512K max
Display:LCD - 80 X 25 text
640 X 200 graphics
Storage:two internal floppies
3-1/2 inch, 720K each
Ports:expansion bus
Peripherals:thermal printer
serial, parallel ports
CRT display adapter
Power:12vdc, pin +
OS:PC-DOS 3.2, BASIC






IBM's first laptop computer is a big improvement over their earlier portable computer, the giant IBM Portable PC from 2 years earlier in 1984.

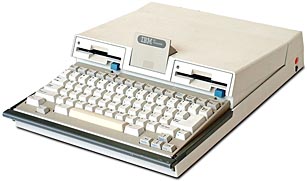

Is the IBM 5140 "Convertible" really a convertible? Yes - even the top (display) comes off.

Why would you want to remove the LCD display? With the CRT Display Adapter attached, you can use an external monitor instead.

The Convertible has no standard expansion ports - you can install an internal modem ($450), and on the back is the system bus for the optional adapters to be installed.
These include:
  • thermal/ribbon printer - $295.
  • serial/parallel adapter - $195.
  • CRT display adapter (640 X 200) - $350.

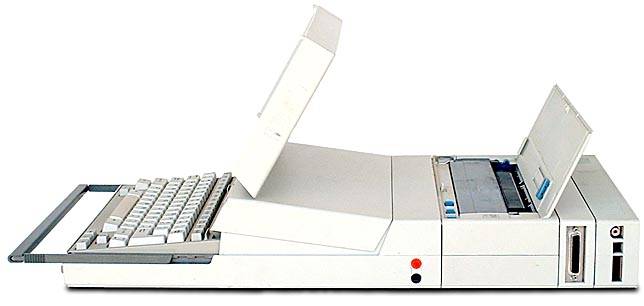

  • All of these adapters "convert" the Convertible into a more useful machine, but with all of them installed, the system grows an extra 7 inches in length and the weight increases from 12 pounds to 20 pounds, making it rather long and unwieldy, to say the least.

    The Convertible comprised many firsts for IBM -
  • their first computer to run on batteries.
  • the first IBM computer to have 3.5-inch floppy drives.
  • their first use of Surface Mounted Devices in a computer.

  • Normally the Convertible would run PC-DOS 3.2 or later, but if you power-up without any disks installed, it will default to the BASIC programming language.

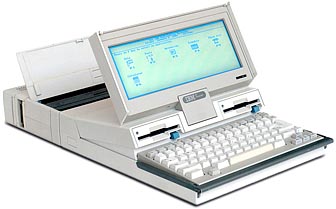

    The original LCD display on the Convertible had poor contrast and was difficult to read. It was replaced by a higher quality version, and finally a very nice backlit version, as seen here to the left.
