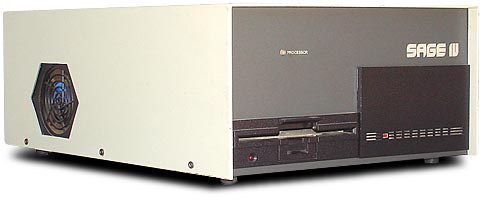

SAGE IV
Model:SAGE IV
Available:1983
Price:US $8,500
CPU:Motorola 68000 @ 8MHz
Memory:256 KB, 1MB max
Display:serial terminal
Ports:6-serial, 1-parallel
 IEEE-488
Storage:5 1/4-inch floppy drive
 Winchester HD
OS:UCSD p-System IV



"The SAGE IV may well be the best 68000-chip computer on the market. I love it".
Jerry Pournelle
BYTE magazine




The SAGE II was the first computer designed and released by Sage Computer Technology. The design started in August 1981 and was first shown to the public at the 7th annual West Coast Computer Faire in March 1982 in San Francisco, California.

The SAGE IV came out in 1983, a year after the SAGE II. There never was a SAGE I or SAGE III system.

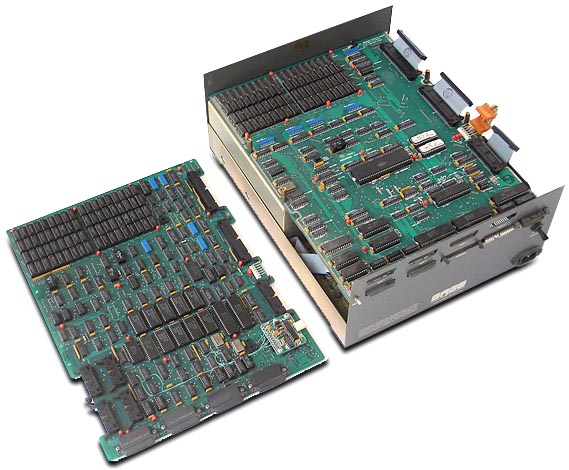

The SAGE IV used the same CPU logic board as the SAGE II, but added a second board that sat atop the first board.

This second PCB contained an additional 512 KB of DRAM, four serial ports for supporting more simultaneous users, and a controller to support a Winchester hard disk.

Price lists from 1983 have system configurations for a 6MB, 12MB, or 18MB Winchester hard drive. Eventually hard drives as large as 40MB were available.

SystemDescriptionPrice
SC0020Low profile SAGE IV
1-640K floppy drive		$3,900
SC0021Low profile SAGE IV
2-640K floppy drives		$4,700
SC0022SAGE IV
1-640K floppy drive,
1-6MB Winchester HD		$7,300
SC0023SAGE IV
1-640K floppy drive,
1-12MB Winchester HD		$7,900
SC0024SAGE IV
1-640K floppy drive,
1-18MB Winchester HD		$8,500
